BETTER SOLUTIONS, BETTER PROCESSES™
Innovations:
- Ease-of-Use
- Robustness
- Secure Supply Chain
- Steadfast Quality
- Improved Economics
- Minimized Lab Bench Space
DOWNSTREAM PROCESSING
Modular Benchtop Single Use TFF Systems
- Economical
- Add processing modules as you need: diafiltration, perfusion, retentate pressure control, etc.
- Microfiltration and ultrafiltration
- 0.05 m2 - 2 m2 cassette area
- Cassettes and Hollow fiber
- Tubing sizes from 1/8" ID to 1/2" ID
- Operating Pressures to 60 psig
- Feed pump selection based on application
- Component and software agnostic
Automated Benchtop Single Use TFF Systems
- 0.05 m2 - 2 m2 cassette area
- Cassettes and Hollow fiber
- Recipe Control
- Tubing sizes from 1/8" ID to 1/2" ID
- Operating Pressures to 60 psig
- Feed pump selection based on application
- Small footprint: 25" x 22" x 25"
- Component and software agnostic
- Pilot and GMP production
Benchtop Single Use Chromatography Systems
- Flowrates up to 3 LPM
- Column or membrane chromatography
- Column downward flow, reverse flow and bypass configurable
- Tubing sizes from 1/8" ID to 3/8" ID
- Operating Pressures to 60 psig
- Smalll footprint: 24" x 24" x 24"
- Component and software agnostic
Single Use Tangential Flow Filtration Systems: Pilot to Commercial Scale
- Cassette and hollow fiber systems up to 20 m2
- 1/2" to 1 " ID Tubing
- Scalable system option provides a single system that handles multiple tubing ID's. Buy one system, utilize in multiple unit operations
Single Use Chromatography Systems: Pilot to Commercial Scale
- Single and binary pump systems from 1/2" ID to 1" ID tubing
- Customizeable inlet and outlet ports
- Integrated buffer dilution as an option
- Scalable system option provides a single system that handles multiple tubing ID's.
Single Use Multipurpose Filtration Systems: Pilot to Commercial Scale
- Depth filtration
- Virus filtration
- Sterile filtration
- Tubing ID's from 1/2" to 1"
- Flowrates friom 0.167 to 41 LPM
- Pressure up to 60 psig
Single Use Inline Buffer Dilution Systems
- Dilution ratios from 5:1 to 20:1.
- Inline Dynamic mixing
- Tubing ID's from 1/8" to 1.5"

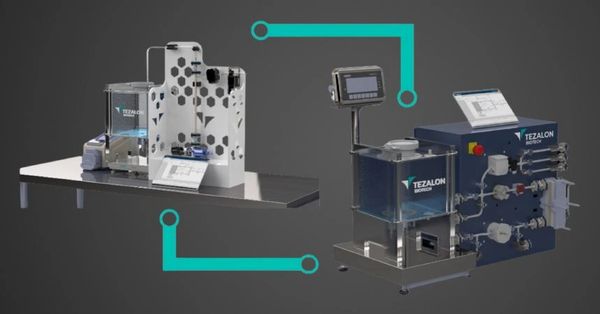

Scalable Single Use TFF and Chromatography Systems
Maximze the utility of your capital spend.
One system, multiple tubing ID's, multiple unit operations
Click the picture to learn about the concept.

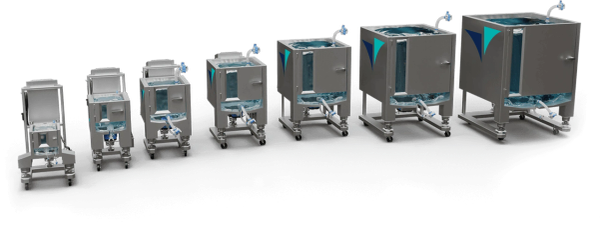

Tezalon Single Use Mixers
- Levitating Impeller
- Drive integral to the mixer
- Drive does not need to be charged.
- No mechanical bearing assembly
- 0.4L to 5000 L working volumes

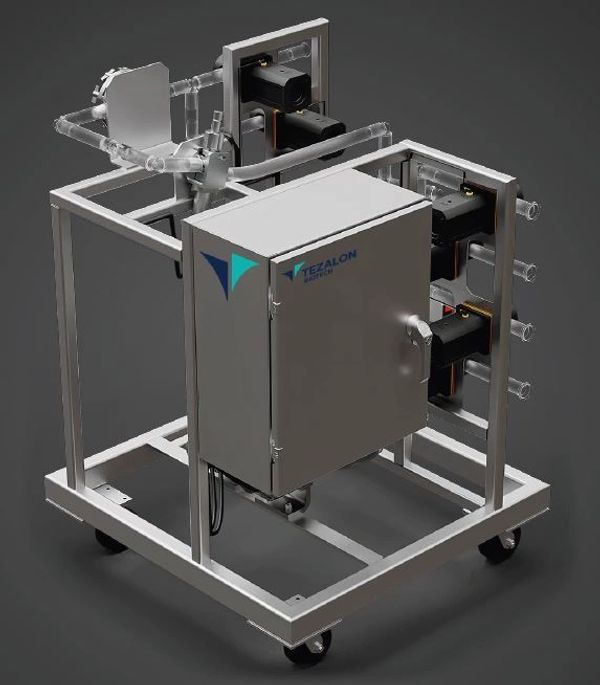

Tezalon Single Use Molecular Blending Systems
For Critical chemical modification unit operations such as viral inactivation.
- Additions
- Mixing
- Adminstration

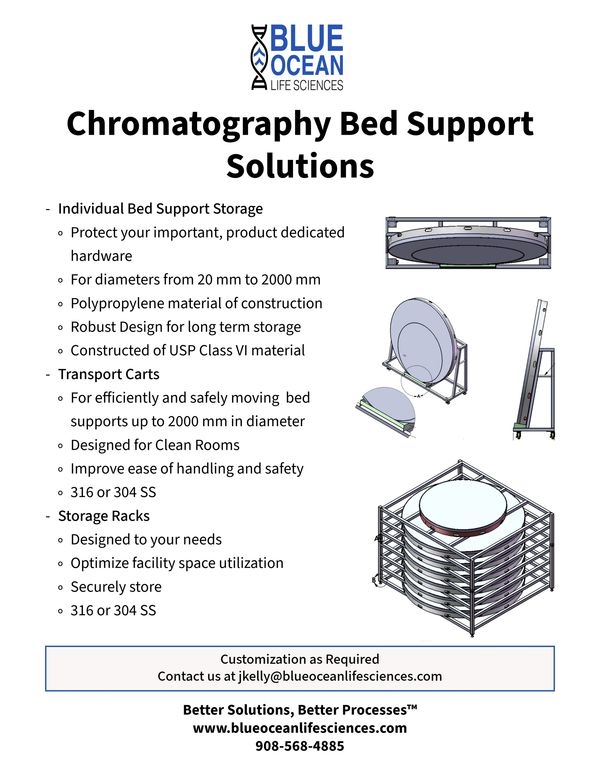

Chromatography Bed Support Storage
- Store diameters from 20 mm to 2000 mm
- Robustly store bed supports segregated by drug product
- USP Class VI Material
- Cart technology to easily and safely transport the bed supports to storage
- Storage racks available to optimize your space and securely store
